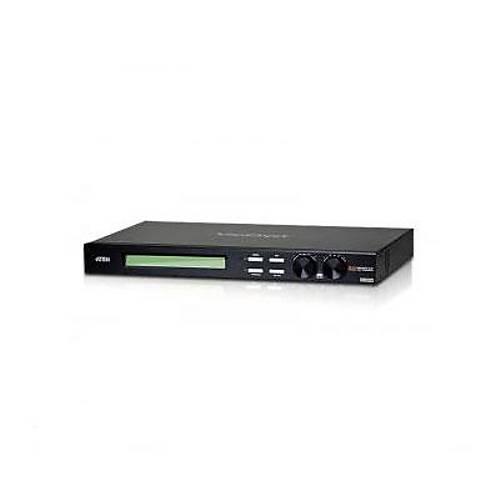

4 giriş 4 çıkış VGA Matrix Seçici (VGA Matrix Switch)
Geçici olarak temin edilememektedir. Temin edildiğinde
Bu ürünün yerine tercih edebileceğiniz ürünler
- Connects any of four VGA Video + Audio inputs to any of four VGA Video + Audio outputs
- Long distance transmission – up to 30m
- Easily switch between multiple sources and multiple displays
- Easy Operation:
• Front panel pushbuttons
• RS-232 serial controller - Superior video quality – up to 1920 x 1440; VGA, SVGA, XGA, SXGA, UXGA, and WUXGA (1920 x 1200)
- Supports up to 300 MHz bandwidth for high performance video
- EDID Expert – selects the optimum EDID settings for smooth power-up and highest quality display
- Built-in bi-directional RS-232 serial port for high-end system control*
- Independent switching of audio and video sources – each input can be independently connected to any or all outputs for flexibility
- Rack Mountable
| Video Input | |
| Interfaces | 4 x HDB-15 Male (Blue) |
| Impedance | 75 ? |
| Max. Distance | 1.8 m |
| Video Output | |
| Interfaces | 4 x HDB-15 Female (Blue) |
| Impedance | 75 ? |
| Max. Distance | 30 m |
| Video | |
| Max. Bandwidth | 300 MHz |
| Max. Resolution | Up to 1920 x 1200 |
| Max. Distance | Up to 30 m |
| Audio | |
| Input | 4 x Mini Stereo Jack Female (Green) |
| Output | 4 x Mini Stereo Jack Female (Green) |
| Control | |
| RS-232 | Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No |
| IR | 1 x Mini Stereo Jack Female (Black) |
| EDID Settings | EDID Mode: Default / Port1 / Remix / Auto |
| Power | |
| Connectors | 1 x DC Jack (Black) |
| Consumption | 5.3 VDC, 2.7W |
| Environmental | |
| Operating Temperature | 0-50°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.87 kg ( 1.92 lb ) |
| Dimensions (L x W x H) | 26.00 x 7.61 x 4.40 cm (10.24 x 3 x 1.73 in.) |
| Carton Lot | 5 pcs |
Package Contents
- 1x VM0404 4x4 Video Matrix Switch with Audio
- 1x Power Adapter
- 1x User Instructions
| Teknik Özellikler | |
|---|---|
| İşlevi | VGA Matrix Seçici |
| Bağlantı | VGA Giriş - VGA Çıkış |
| Çözünürlük Desteği | Full HD |
| Diğer Özellikler | |
|---|---|
| Stok Kodu | ATEN-VM0404 |
| Marka | ATEN |
| Stok Durumu | Fiyat Sorunuz |
| Garanti (Yıl) | 2 |
